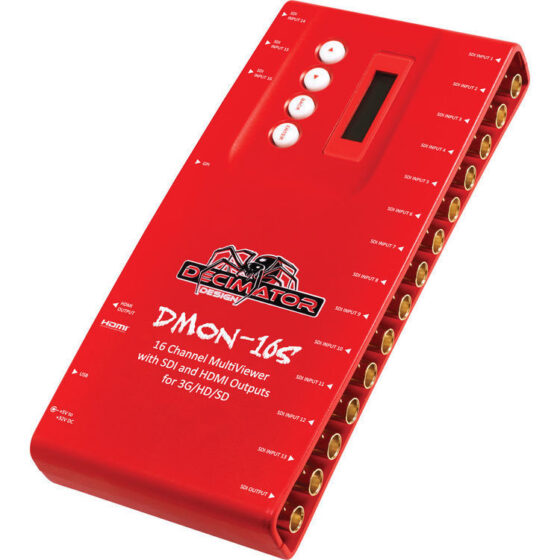

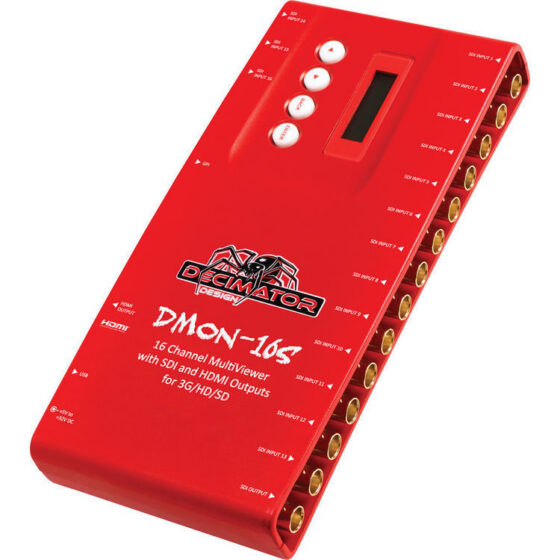

Decimator DMON-16S 16 Channel Multiviewer & Video Converter
Product Description
Featuring 16 independent 3G/HD/SD-SDI inputs, the DECIMATOR DMON-16S Multi-Viewer can be used either as a 1-to-16-channel multi-viewer or 16-to-1-input multiplexer supporting up to 1080p@60/59.94/50Hz on input and output. A miniature multi-viewer with front-panel LCD menu access, the DMON-16S is suitable for both on-location and studio applications, as you won’t need to use a computer or DIP switch to make selections and adjust settings. The DMON-16S offers 8-channel audio metering overlay per window with individual enables, custom positioning, and size, and it features 1 3G/HD/SD-SDI output and 1 HDMI output. RS-422 and RS-485 support additionally allow you to select tally display and control the UMD position and size. Multi-View output mode lets you select and display inputs with different formats and frame rates at the same time.
