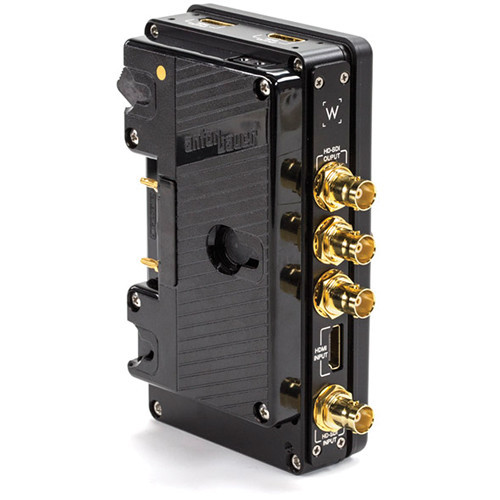

Wooden Camera C Box

Wooden Camera C Box

Product Short Description
The Wooden Camera C-Box 3G-SDI and HDMI Converter provides both video signal conversion and signal splitting and is powered from the D-Tap of a battery or battery plate using an included cable. It accepts an HDMI or 3G/HD/SD-SDI input signal and provides three SDI and two HDMI outputs that are all simultaneously active. This lets […]
+
-
Add to Quote
Continue Shopping
List of Categories and Packages
The Wooden Camera C-Box 3G-SDI and HDMI Converter provides both video signal conversion and signal splitting and is powered from the D-Tap of a battery or battery plate using an included cable. It accepts an HDMI or 3G/HD/SD-SDI input signal and provides three SDI and two HDMI outputs that are all simultaneously active. This lets you send your video signal to several external HDMI and SDI devices, including monitors, recorders, and wireless transmitters. The converter accepts 12 to 24 VDC power via a 4-pin mini XLR input. A 4″ D-Tap Power is included for powering the device from compatible batteries or battery plates. An AC adapter is also included. To provide power to accessories, such as a wireless transmitter, a 5 VDC Mini USB output is provided. LED indicators on operator’s side of the converter let you easily monitor power and signal status.
